Key Information about the 16-bit ADC ASIC
The 16-bit ADC ASIC includes:
- Clampcircuit
- CDS (controllable via DLL)
- OffsetCorrection DAC
- PGA
- 16-bit ADCCore
- On-chip VoltageReference
- SPI programmable
- Serial LVDS or
- 8-bit CMOS outputs

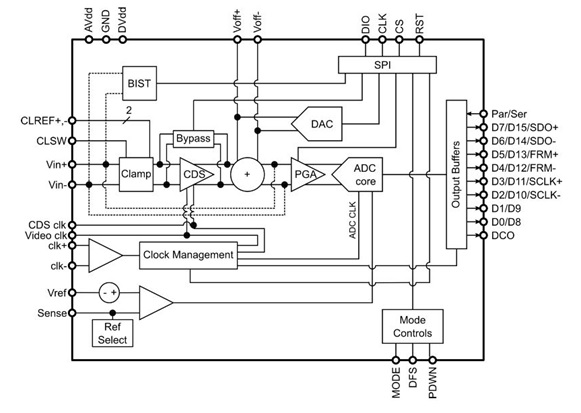

The Block Diagram of the 16-bit ADC including an Analog Front End (AFEND) for Imaging Applications is shown in the Figure below:

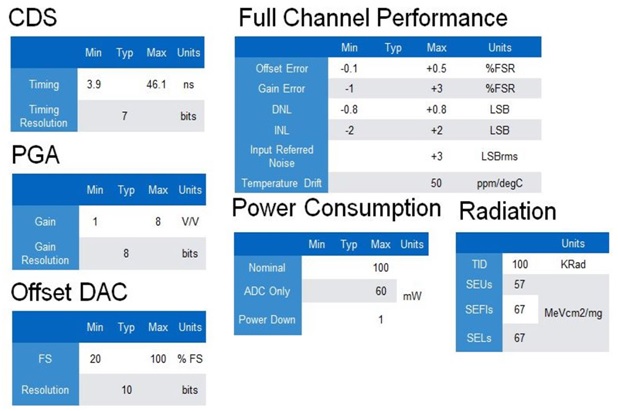

The Characteristics of the 16-bit ADC ASIC are presented in the following Table:
